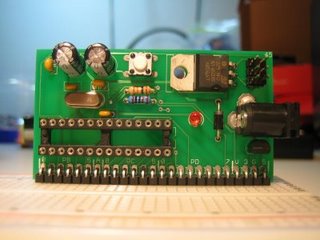

QuickAVR
27. August 2008 - 21:05 — admin
A quick prototyping system that will plug into a breadboard without taking up too much space
Features
* Works with ATmega168 (and probably others)
* 16MHz crystal
* 5V and 3V regulators can supply power to breadboard
* Plugs vertically into breadboard taking minimal space
* ISP programmable
* 1-wire debug can be used
* Simple to build, no surface mount components
